Ultrasound

ReliaMed Portable Ultrasound

ReliaMed Portable UltrasoundPortable ultrasound unit features pulse waveform, 3 power settings, and a 30-minute timer with automatic shut off. Generates deep heat within body tissues for treatment of selected medical conditions, such as pain relief, muscle spasms, and joint contractures. Not for the treatment of malignancies. 1-MHz output frequency. 5.4-us pulse width. 150-Hz repetition rate. Low (1.6W), medium (2.6W), and high (4.6W) output intensities. 8W temporal maximum power. Pulse output mode. Unit weighs 120g. 172mm L z 54mm W x 42mm H. Includes AC adapter, carrying case, ultrasound gel, and instruction booklet.

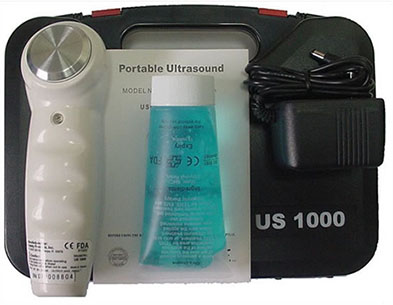

US 1000 Portable Ultrasound

US 1000 Portable UltrasoundUS 1000 2nd Edition Portable Ultrasound Power Source: AC Adaptor (DC 24V/200mA) Output Frequency: 1.0 MHz +/-10% Output Intensity: Low 1.6W, Medium 2.6W, High 4.6W Duty Cycle: Low 7% ,Med 15%, Hi 30% Output Mode: Pulse Pulse Width: 5.4ms +/-10% Repetition Rate: 150Hz +/-10% Timer Setting: 30 minutes auto-off +/-1% System Includes: Stimulator, Lead Wires, AC Adapter, Soft Carrying Case, Instruction Booklet, gel
